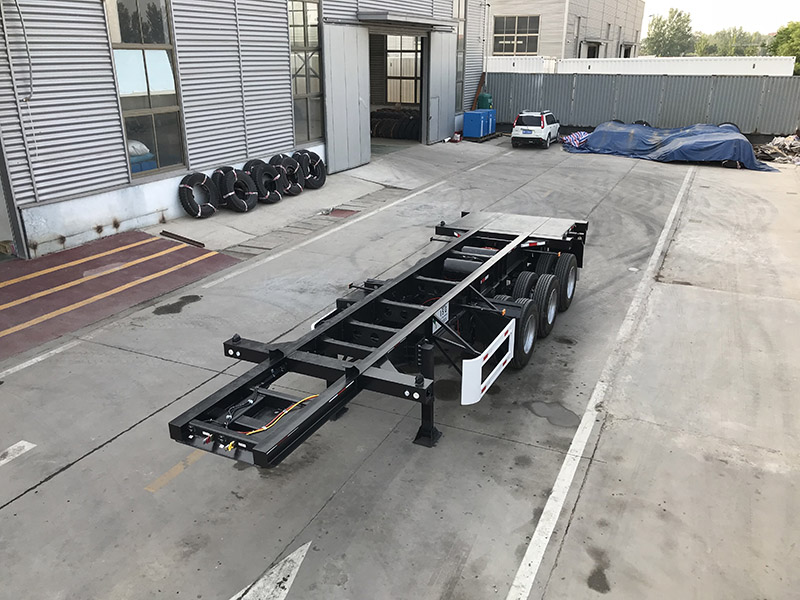

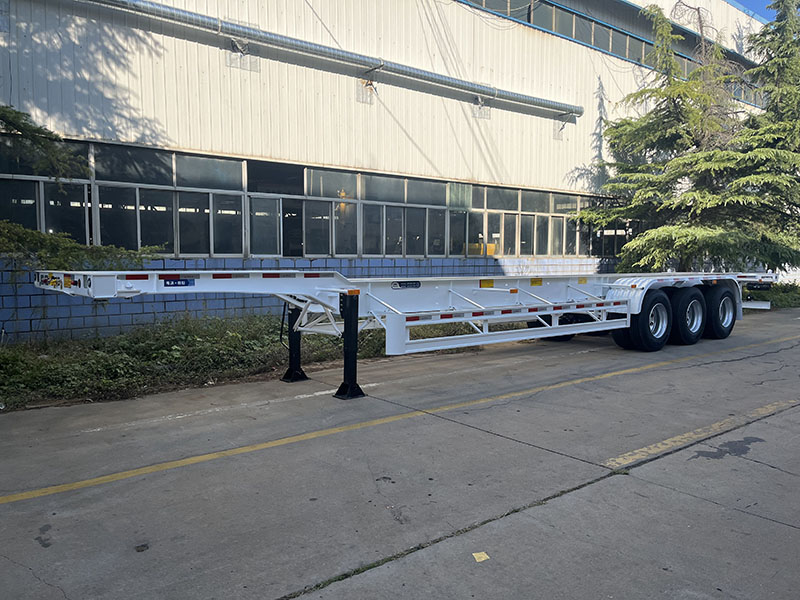

Skeletal Semi Trailer

Skeletal semi trailer is one of our main product. This series of semi trailers use through beam structure, where frame structure has flat type or gooseneck type. It has the characteristics of high integral strength, small weight, elegant appearance, strong loading capacity, and reliable operation.

Here is a breakdown of the configuration of a skeletal semi trailer:

Frame: The trailer frame is the main structure that provides support and strength. It is typically made of lightweight high-strength steel or aluminum alloy. The frame is designed to minimize weight while ensuring durability and load stability.

Kingpin: The kingpin is a cylindrical pin located at the front of the trailer. It is used to connect the trailer to the tractor or truck's fifth wheel coupling.

Landing Gear: The landing gear is a set of telescopic legs located towards the front of the trailer. It supports the front end of the trailer when it is not connected to a tractor. The legs can be manually or hydraulically operated.

Axles: Skeletal semi-trailers typically have three or more axles, depending on the local regulations and payload requirements. The axles support the weight of the trailer and distribute it evenly across the wheels. The rear axle assembly is usually sliding, allowing adjustment to accommodate different container sizes.

Suspension System: The suspension system consists of a series of springs, shock absorbers, and linkages that provide a smooth and stable ride for the trailer. Common types of suspension systems used in skeletal semi-trailers include air suspension and mechanical suspension.

Wheels and Tires: The skeletal trailer is equipped with multiple wheels and tires, typically 10 or more. The tires are designed to withstand heavy loads and provide good traction on various road conditions.

Twist Locks: Skeletal semi trailers have built-in twist locks that secure the cargo, particularly containers, to the trailer. These twist locks prevent the containers from shifting or moving during transportation.

Lighting and Electrical System: The trailer is equipped with a lighting system consisting of various lights, such as tail lights, clearance lights, and turn signal lights. These lights ensure visibility and safety on the road. The electrical system also includes connectors for power supply from the tractor or truck.

Rear Bumper: A sturdy rear bumper is typically installed to protect the trailer and its cargo from rear-end collisions. It also helps to provide stability when loading and unloading containers.

Overall, a skeletal semi-trailer is designed to be versatile, lightweight, and efficient for transporting various types of cargo, especially containers.

It is recommended to consult with a manufacturer or dealer to obtain specific parameter details for a skeleton semi trailer based on your requirements.

Whatsapp/Tel: +86 18615520624

Email: sales@vehiclemaster.com

Specification of Skeletal Semi Trailer

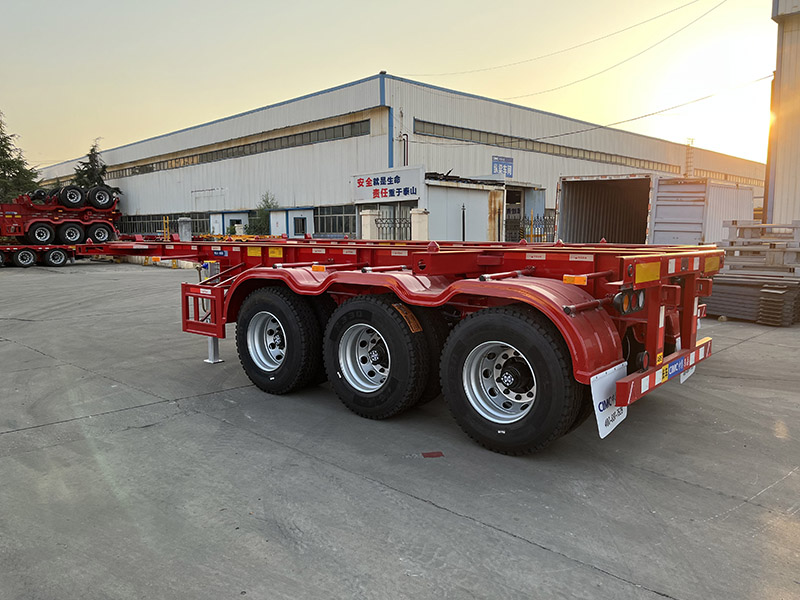

Details of Skeletal Semi Trailer

Rational Analysis Design Adhering to the concept of uniform force on trailer frame ,the 42 rib design ensures the safety and carrying capacity of our trailer.
	Advanced Axle Performance Integrated advanced low alloy axle beam with no welding points;    Strong capacity and high strength;    axles can be free of maintenance up to 3 years or 400,000km.
Landing Gear Vehicle Master or JOST landing gear can be optioned made in aluminum or steel;  Designed to work under both high and low temperatures in the range of -30℃ to 120℃.

Video of Skeletal Semi Trailer

Our Service

After-sales service

No rely what the situation. Service personnel will reply and furnish options inside 12 hours

Quality Assurance

All merchandise are inspected through expert technicians so that they can meet the absolute best standards. Quality manipulate is usually our pinnacle precedence to fulfill our customers.

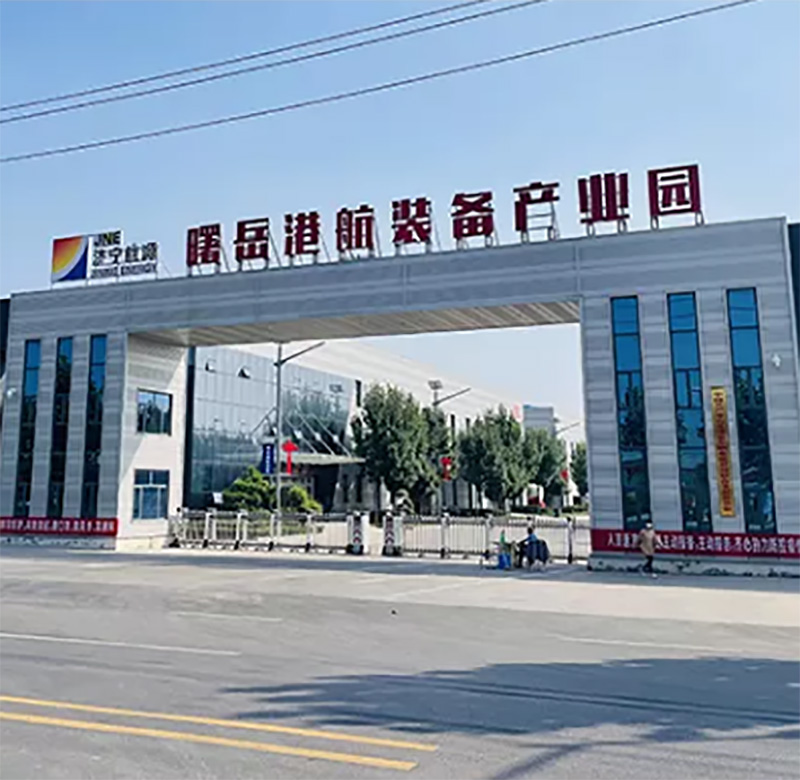

About Us
