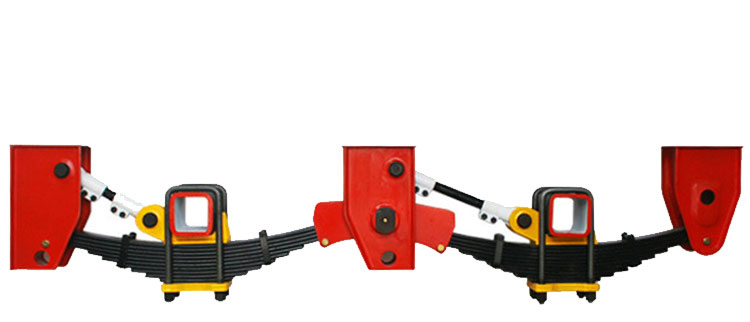

Mechanical Suspension

1. Carry greater vertical load and better torque.

2. Easy installation, low price, long service life, low maintenance cost.

3. It is suitable for various road conditions and has many optional specifications.

Product Name: Mechanical Suspension

Price:Direct factory. Order now and get 10% off

Different Parameters, Different Price

Contact us for more infos. Whatsapp/Tel: +86 18615520624

Email: sales@vehiclemaster.com

Contact Now

Product Details

The suspension is stamped and welded with Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring will not shift during use.Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life and large load.

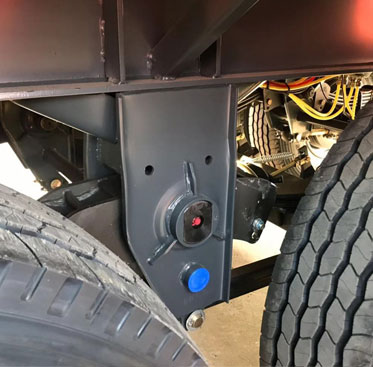

Mechanical Suspension

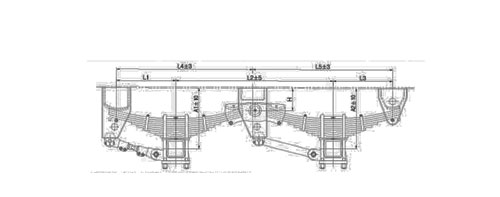

Specification of Mechanical Suspension

MODEL	A1(mm)	A2(mm)	A3(mm)	L1(mm)	L2(mm)	L3(mm)	L4(mm)	L5(mm)	H(mm)	LoadingCapacity(kg)
VM13.3/D130/AR5/10	435	426	417	490	1310	490	1135	1155	130	13,000*3
VM13.3/D150/AR5/10	455	446	437	490	1310	490	1135	1155	150	13,000*3
VM13.3/D180/AR5/10	485	476	467	490	1310	490	1135	1155	180	13,000*3
VM13.3/D210/AR5/10	515	506	497	490	1310	490	1135	1155	210	13,000*3
VM13.3/D230/AR5/10	535	526	517	490	1310	490	1135	1155	230	13,000*3
VM13.3/D250/AR5/10	555	546	535	490	1310	490	1135	1155	250	13,000*3
VM13.3/D270/AR5/10	575	566	557	490	1310	490	1135	1155	270	13,000*3
VM13.3/D300/AR5/10	605	596	587	490	1310	490	1135	1155	300	13,000*3
VM13.3/D320/AR5/10	635	716	607	490	1310	490	1135	1155	320	13,000*3
VM13.3/D350/AR5/10	655	646	637	490	1310	490	1135	1155	350	13,000*3

Product Details

The durability, ease of maintenance, and emergency operation characteristics of these operating gears are critical to their use, especially where harsh operating conditions, long operating lives of long distances or low mileage between service points are current requirements.

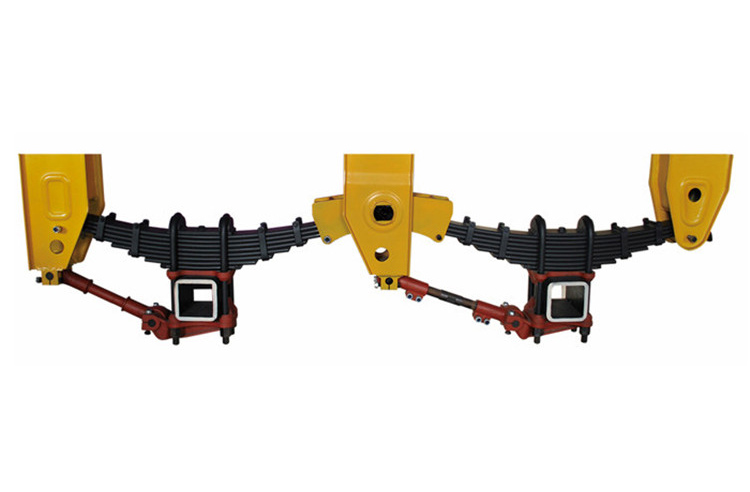

Mechanical Suspension

Features and advantages of products

1. Carry greater vertical load and better torque. 2. Easy installation, low price, long service life, low maintenance cost. 3. It is suitable for various road conditions and has many optional specifications.

Mechanical Suspension

Packaging Details of Mechanical Suspension

Packaging Details Vehicle Master Mechanical Suspension 20 Tons 2 Axle 150mm Square Beam

1.Plywood Case Packing

2.Bulk Packing

3.Customzied Packing

4. Port: Qingdao Port China/Tianjin Port China

Mechanical Suspension

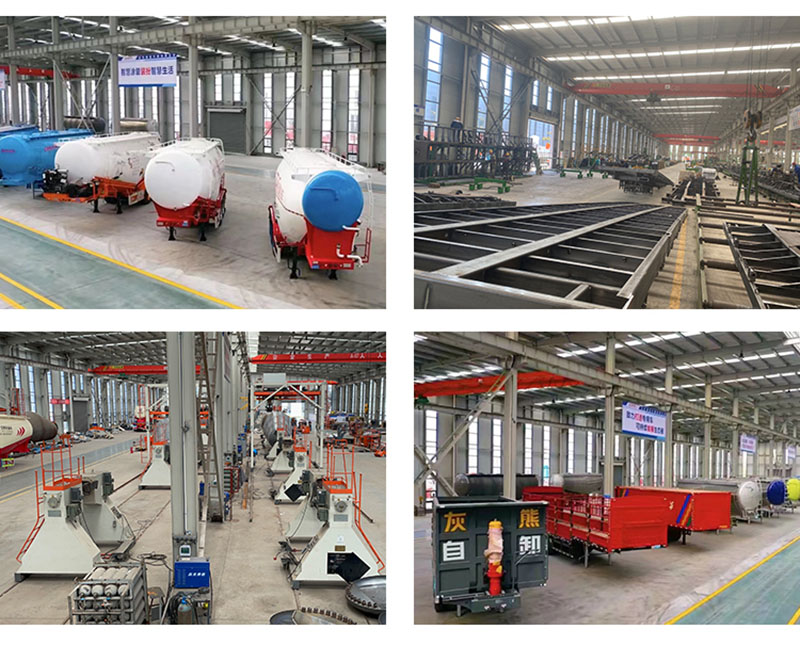

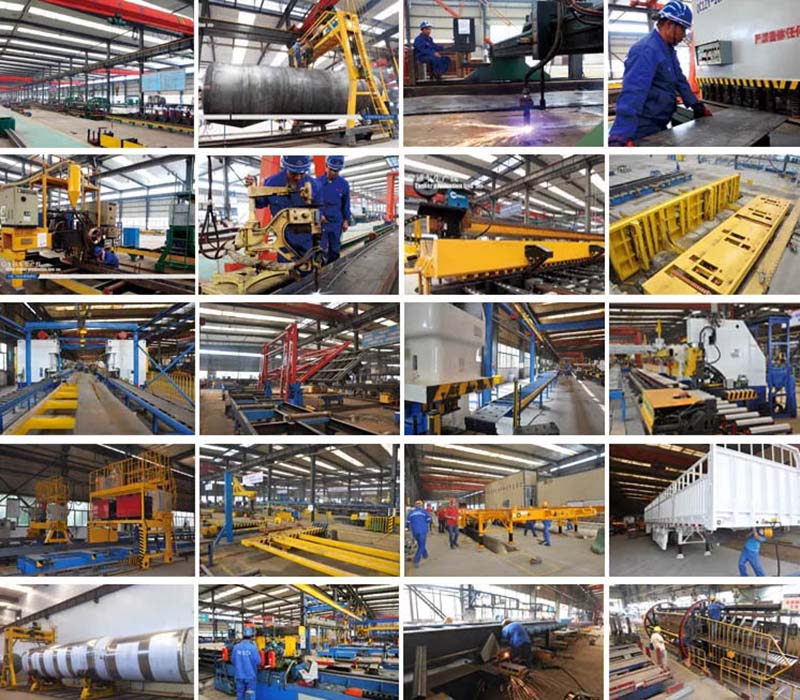

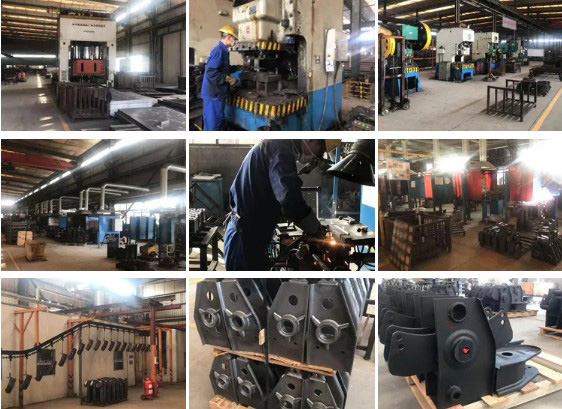

VEHICLE MASTER Truck Trailer Production Shop

Since 1980s VEHICLE MASTER staff begin to think of truck trailer transportation,Throuth almost 40 Years R&D,production and practice,Finally become famous Manufacturer and supplier of truck trailer.

The important merchandise inclusive of Container semi trailer, low mattress semi trailer, gasoline tank semi trailer,side wall semi trailer, cargo semi trailer, fence semi trailer, area semi trailer, tipper semi trailer, car carrier semi trailer and all varieties awesome purpose semi trailer.Sinotruk Shacman CC producers truck tractor, dump truck unique truck sequence at the identical time with all spare parts, such as axles, landing gear,springs, suspension, etc.
