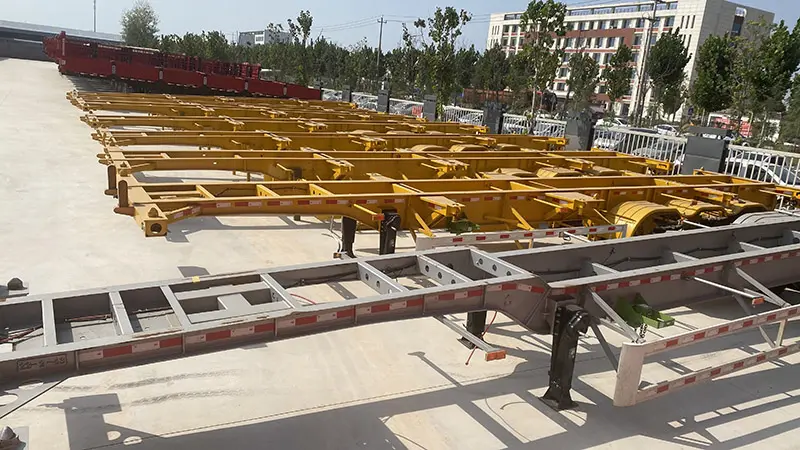

Container Chassis Trailer 40ft
A container chassis trailer is a type of semi-trailer specifically designed to transport shipping containers. The "40ft" refers to the length of the container that can be accommodated on the chassis trailer, which is 40 feet. These trailers are typically used for intermodal transportation, where containers are loaded onto the chassis at a port or terminal, and then transported by road to their final destination. The chassis trailer has twist locks or other securement mechanisms to safely hold the container in place during transit.
Product Name: Container Chassis Trailer 40ft
Price:Direct factory. Order now and get 10% off
Different Parameters, Different Price
Contact us for more infos. Whatsapp/Tel: +86 18615520624
Email: sales@vehiclemaster.com
Container trailer implements advanced manufacture technology, applies automatic submerged-arc welding for vertical beam and shot blasting treatment for the frame, removes welding stress effectively,utilizes advanced equipment and technology during the entire production process to ensure formation and assembly accuracy.
Specification of Container Chassis Trailer 40ft
It is recommended to consult with a manufacturer or dealer to obtain specific parameter details for a Container Chassis Trailer 40ft based on your requirements.
Whatsapp/Tel: +86 18615520624
Email: sales@vehiclemaster.com
20FT FLATBED TRAILER | ||
Brand: Vehicle Master
| Brand: Vehicle Master
| Brand: Vehicle Master
|
2 Axles/3 Axles
| 2 Axles/3 Axles /4 Axles
| 3 Axles /4 Axles
|
20ft Container / Cargo Loading
| 1*40ft/2*20ft Container / Cargo Loading
| 1*40ft/1*45ft Container / Cargo Loading
|
Loading Capacity: 20 - 60 Tons
| Loading Capacity: 30 - 80 Tons
| Loading Capacity: 30 - 80 Tons
|
Type: Gooseneck Type/ Tandem Type
| Type: Gooseneck Type/ Tandem Type
| Type: Gooseneck Type/ Tandem Type
|
Main Beam | ||
Material: Q345/T700
| Material: Q345/T700
| Main Beam Material: Q345/T700
|
Upper Plate Thickness: 12mm
| Upper Plate Thickness: 16mm
| Upper Plate Thickness: 16mm
|
Middle Plate Thickness: 6mm
| Middle Plate Thickness: 10mm
| Middle Plate Thickness: 10mm
|
Lower Plate Thickness: 14mm
| Lower Plate Thickness: 18mm
| Lower Plate Thickness: 18mm
|
Height: 500mm
| Height: 500mm
| Height: 500mm
|
Platform Thickness: 2.5mm
| Platform Thickness: 3mm
| Platform Thickness: 3mm
|
Dimension | ||
L*W*H: 7000mm*2500mm*1570mm
| L*W*H: 12400mm*2500mm*1570mm
| L*W*H: 13950mm*2500mm*1600mm
|
Axle | ||
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other
| 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Othe
| 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other
|
Tire | ||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
| 12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Bridgestone/ Other Brand
| 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
|
Rim | ||
9.00*22.5 (8/12 Pieces) Steel/Aluminum
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum
|
Leaf Spring | ||
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces
|
King Pin | ||
#50(2")/#90(3.5"), JOST/Other Brand
| #50(2")/#90(3.5"), JOST/Other Brand
| #50(2")/#90(3.5"), JOST/Other Brand
|
Landing Gear | ||
28 Ton Two Speed, JOST/Other Brand
| 28 Ton Two Speed, JOST/Other Brand
| 28 Ton Two Speed, JOST/Other Brand
|
Twist Lock | ||
4 Sets
| 12 Sets
| 12 Sets
|
Vehicle Painting | ||
Electrophoresis painting
| Electrophoresis painting
| Electrophoresis painting |

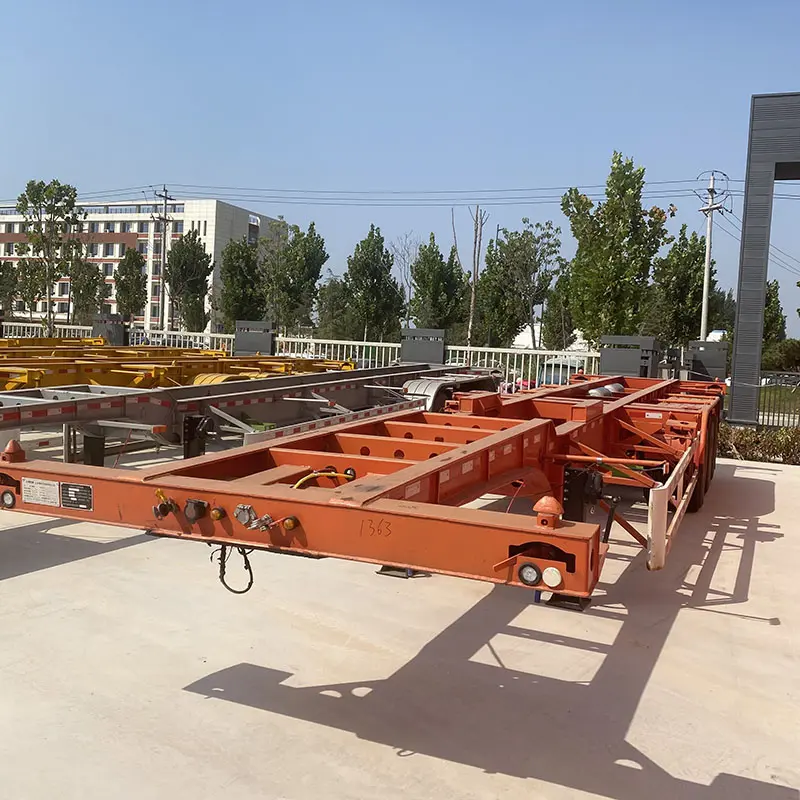

Details of Container Chassis Trailer 40ft
Torsion lock design is unique, durable, to ensure the stability of the container and convenient loading and unloading. | |
| Flat car with pillars The edge of the flatbed can be fitted with multiple posts for transporting logs and steel pipes. |
Waterproof LED lamp Equipped with waterproof LED lights to prevent short circuit and ensure the safety of vehicle transportation at night. | |

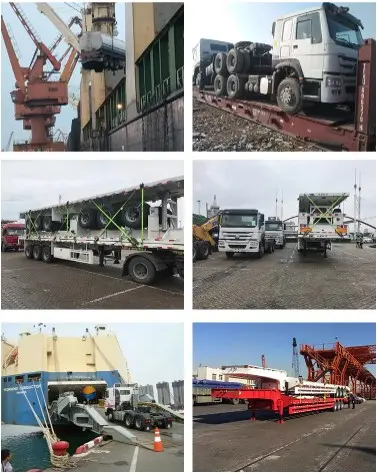

Package and Delivering of Container Chassis Trailer 40ft
1.Nude Packing 3 sets stacked by bulk cargo ship/Ro-Ro ship/Land transportation；
2.Cut the rear part which can load two sets in one 40ft container;
3.Keep the trailer original but load two sets in one 45ft container.
Our Service
Before Sale Service
More Than 20 Technical-Business Staff,Provide most professional service and most economical solution for customers.
Middle Sale Service
Production schedule, delivery Time,Shipping Date, all processes are monitored and communicated to customers
After Sale Service
No matter what situation when you meet, service staffwill response within 12 hours and provide solution.

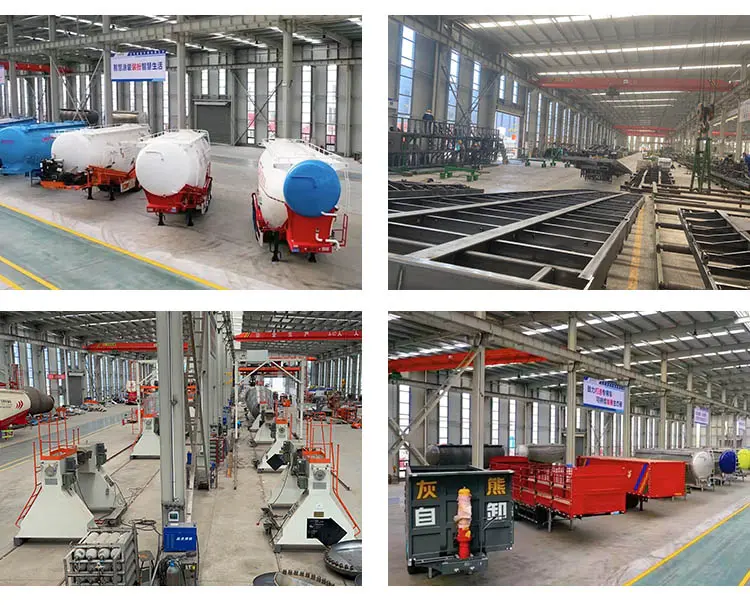

About Factory
Since 1980s Brand VEHICLE MASTER was created,Whole Staff Begin to Think of truck trailer transportation,Through Almost 40 Years R&D,production and practice,Finally become famous Manufacturer and supplier of truck trailer. Vehicles Production Base over 40 years of development and accumulation. The leading products including Container semi trailer, low bed semi trailer, fuel tank semi trailer,side wall semi trailer, cargo semi trailer, fence semi trailer, box semi trailer, tipper semi trailer, car carrier semi trailer and all types special purpose semi trailer.Sinotruk Shacman CC brands truck tractor, dump truck other truck series together with all spare parts, such as axles, landing gear,springs, suspension, etc.
