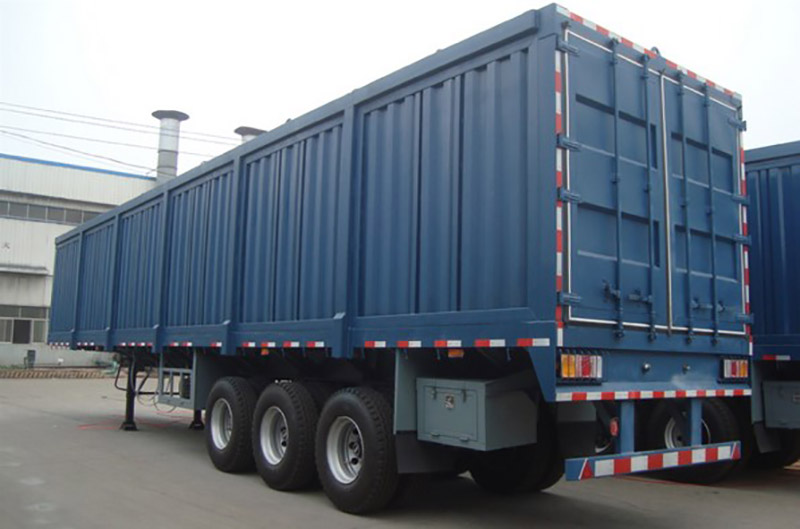

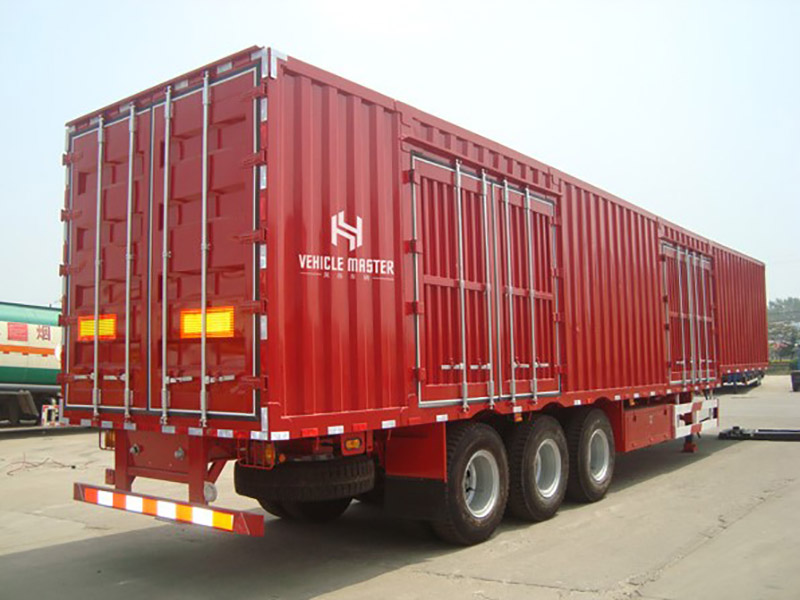

Box Semi Trailer
Box Semi Trailer body makes use of no-vertical beam shape and through-going beam kind structure, vertical beam makes use of flat kind or goose neck type, and is welded through computerized submerged arc welding, body makes shot blasting treatment.
Product Name: Box Semi Trailer
Price:Direct factory. Order now and get 10% off
Different Parameters, Different Price
Contact us for more infos. Whatsapp/Tel: +86 18615520624
Email: sales@vehiclemaster.com
Box semi trailer has strong strength, small weight, rational structure and beautiful appearance. All parts use foreign and domestic famous brands, are purchased, inspected and used strictly according to the requirements of quality system documents to ensure the best performance.
Box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities. The interior part adopts a skeletonless structure, maximizing the carrying capacity. X-shape tension brace fixed the box shell a very strong unit.The side guard adopts close-ended design to reduce the crosswise risks effectively, and energy consumption, running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.
Specification of Box Semi Trailer
2 Axles Van Semi Trailer | 2 Axles Van Semi Trailer | 2 Axles Van Semi Trailer |
Brand:VEHICLE MASTER | ||
Application:Food/Cargo Loading | ||
Loading Capacity:20-50 Tons | Loading Capacity:30-60 Tons | Loading Capacity:60-100 Tons |
L*W*H:13000mm*2550mm*2400mm | ||
Door Position:Multi-Choice | ||
Door opening style:Multi-Choice | ||
Box Plate Thickness:0.9mm | ||
OEM/ODM:Available | ||
Tandem Style:Available | ||
SKD/CKD Cooperation:Available | ||
Main Beam Material:Q345/T700 | Main Beam Material:Q345/T700 | Main Beam Material:Q345/T700 |
Height: 500mm | Height: 500mm | Height: 500mm |
Upper Plate: 12mm | Upper Plate: 14mm | Upper Plate: 16mm |
Middle Plate: 6mm | Middle Plate: 8mm | Middle Plate: 10mm |
Lower Plate: 14mm | Lower Plate: 16mm | Lower Plate: 18mm |
Axles:2*13T/16T FUWA/BPW | Axles:3*13T/16T FUWA/BPW | Axles:4*13T/16T FUWA/BPW |
Tire:11.00R20/12R22.5*8 pieces, Linglong/Triangle/Double-Coin/Bridgestone | Tire:11.00R20/12R22.5*12 pieces, Linglong/Triangle/Double-Coin/Bridgestone | Tire:11.00R20/12R22.5*16 pieces, Linglong/Triangle/Double-Coin/Bridgestone |
Suspension:Mechanical/ Air | Suspension:Mechanical/ Air | Suspension:Mechanical/ Air |
Leaf Spring:90mm*13/16mm*10 pieces | Leaf Spring:90mm*13/16mm*10 pieces | Leaf Spring:90mm*13/16mm*10 pieces |
Landing Gear:Jost 28T two-speed | Landing Gear:Jost 28T two-speed | Landing Gear:Jost 28T two-speed |
King Pin:Jost 2''(50#)/3.5''(90#) changeable | King Pin:Jost 2''(50#)/3.5''(90#) changeable | King Pin:Jost 2''(50#)/3.5''(90#) changeable |
Tool Box:steel/aluminum | Tool Box:steel/aluminum | Tool Box:steel/aluminum |
Video of Box Semi Trailer
Details of Box Semi Trailer
Finite Element Analysis FEA-Finite element analysis Used in calculation of Aircraft culture strength.Now we used in vehicle to promote product performance. |  |
 | Rational Analysis design Adhering to the concept of uniform force on the trailer frame.42 tough ribs design, Ensure the safety and carrying capacity of trailer. |
Thickness steel plate Like 10mm steel plate, even to 10.9mm thick, special custom-made titanium and niobium-containing steel plate,titanium content of 0.98‰, which ensure Beam and frame's Toughness and strength. |  |
Packaging Details of Box Semi Trailer
Package Type:
New Closed Cargo Box Semi Trailer Price
1.Bulk Packing and Bulk Transportation
2.Bulk Packing and RO-RO Transportation
3.Trailer Whole Body Waxing
Our advantage
1.Traning of trailer operating and normal maintenance .
2. Regularly callback to know the vehicle's working status.
3. Supply the service of regular repair.
4. Solve the customer’s advisory.
5. The overseas engineers are always ready to deal with unexpected needs.
6. 24 hours hotline.
7. CKD and SKD are available.
8. Faster, better and more professional.
