Low Bed Truck Trailer

A low bed truck trailer, also known as a lowboy trailer or a low-bed heavy-duty trailer, is a type of trailer used for transporting oversized or heavy cargo. It is designed with a low deck height, which allows for the transportation of tall or tall equipment, such as construction machinery, industrial equipment, or large vehicles.

The low bed truck trailer typically has a detachable gooseneck or a fixed neck, allowing for easy loading and unloading of the cargo. It also features a ladder or ramp for equipment to be driven or unloaded onto the trailer.

These trailers come in various configurations, including different axle configurations (such as 2-axle, 3-axle, or more), different weight capacities, and different deck lengths. Some low bed truck trailers also have hydraulic systems to help with the loading and unloading process.

The low bed truck trailer is commonly used in industries such as construction, oil and gas, mining, and agriculture, where heavy and oversized equipment need to be transported efficiently and safely.

Low bed truck trailers come in various configurations to suit different transportation needs.

Here are some common configurations:

1. Axle Configuration:

   2-axle low bed trailer: This configuration consists of two axles, typically with dual tires on each axle. It is commonly used for lighter loads.

   3-axle low bed trailer: This configuration consists of three axles, providing higher weight capacity and stability. It is suitable for medium to heavy loads.

   Multi-axle low bed trailer: These trailers have more than three axles, such as 4-axle or 5-axle configurations, allowing for extremely heavy loads and better weight distribution.

2. Deck Length:

   Standard length: Low bed trailers come in different lengths to accommodate varying cargo sizes. The standard length is typically around 48 - 53 feet. However, trailers with longer decks, such as 70 feet or more, are also available for transporting extra-long cargo.

3. Gooseneck Type:

   Fixed gooseneck (FGN): This type of low bed trailer has a fixed gooseneck, which means the trailer's front end is permanently attached to the truck. It offers better stability and durability but limits maneuverability.

   Removable gooseneck (RGN): Low bed trailers with a removable gooseneck allow for detachment from the truck, providing more flexibility in loading and unloading operations.

4. Hydraulic Systems:

   Hydraulic ramps: Some low bed trailers are equipped with hydraulic ramps or ramps with hydraulic assist systems. These ramps can be raised or lowered hydraulically to facilitate loading and unloading of heavy equipment.

5. Suspension Type:

   Air suspension: Air suspension systems provide a smooth and adjustable ride, absorbing shocks and vibrations.

   Leaf spring suspension: Leaf springs are sturdy and reliable, providing good load-carrying capacity and stability.

These configurations can be combined to meet specific transportation requirements, and specialized low bed trailers can be customized further based on the cargo being transported. It's important to consider factors like weight capacity, legal requirements, road restrictions, and cargo dimensions when choosing the appropriate configuration for a low bed truck trailer.

Whatsapp/Tel: +86 18615520624

Email: sales@vehiclemaster.com

Specification of Low Bed Truck Trailer

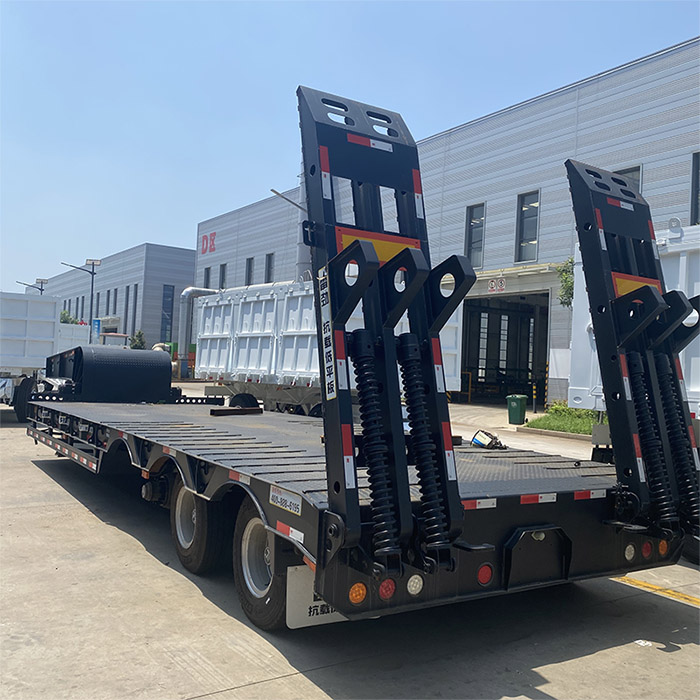

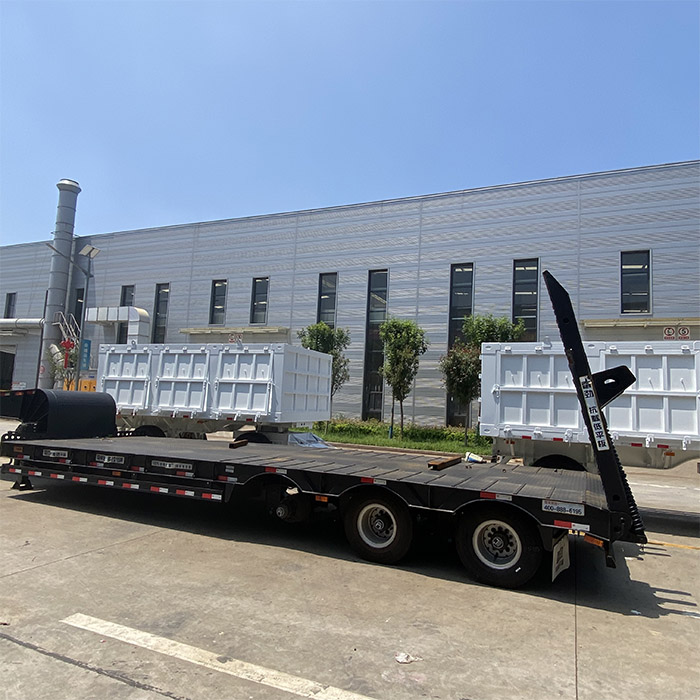

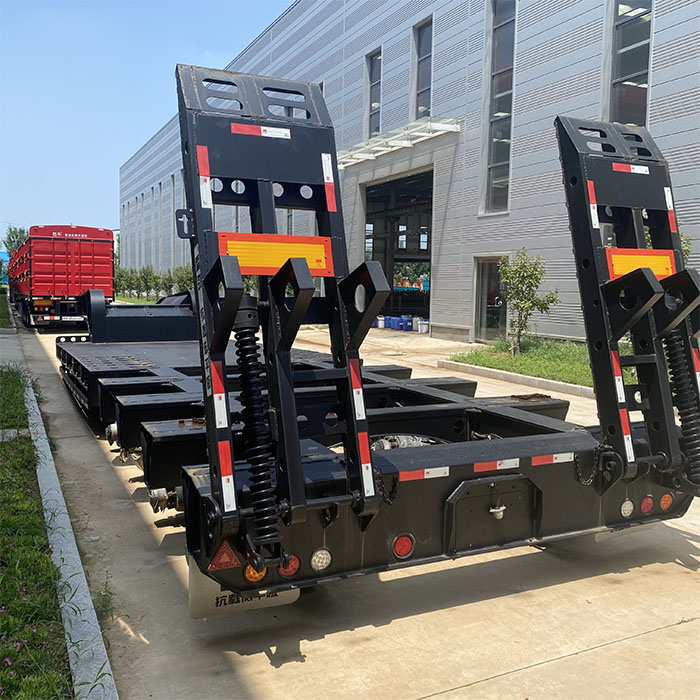

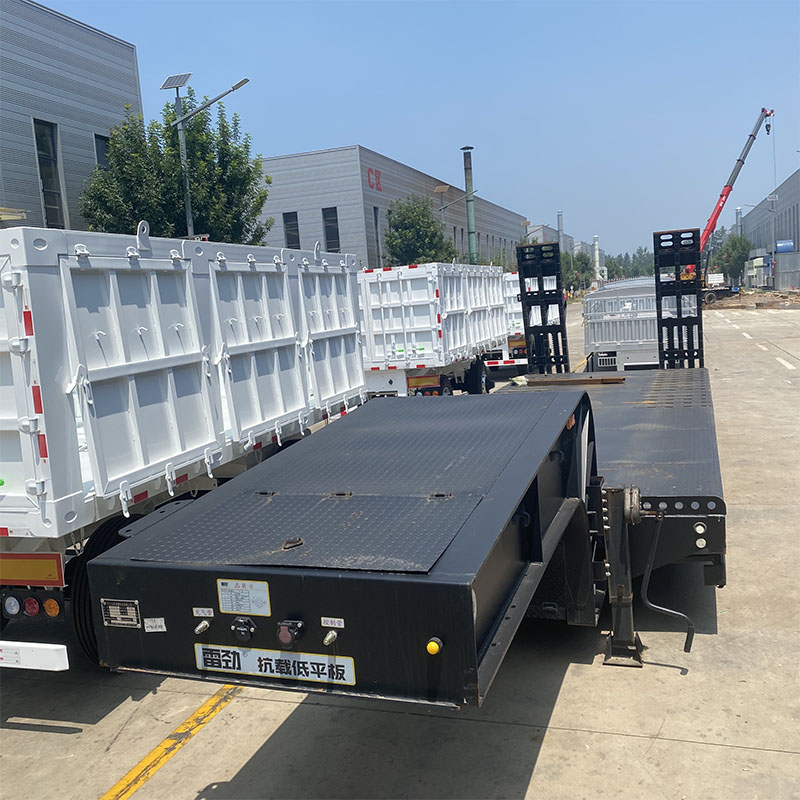

Details of Low Bed Truck Trailer

Packaging Details of Low Bed Truck Trailer

5axles lowbed truck trailer 100T low boy semi trailers with extendable width 250mm

1.Bulk Packing and Bulk Transportation
2.Bulk Packing and RO-RO Transportation
3.Trailer Whole Body Waxing

4. Port: Qingdao Port of China/Tianjin Port of China, etc.

Our Service

Before Sale Service

More Than 20 Technical-Business Staff,Provide most professional service and most economical solution for customers.

Middle Sale Service

Production schedule, delivery Time,Shipping Date, all processes are monitored and communicated to customers

After Sale Service

No matter what situation when you meet, service staffwill response within 12 hours and provide solution.

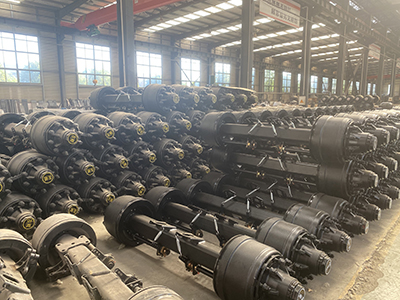

Our Factory

For the reason that Nineteen Eighties logo vehicle grasp was created,whole group of workers begin to think about truck trailer transportation,through almost 40 years r&d,manufacturing and practice,in the end emerge as famous producer and supplier of truck trailer. vehicles production base over forty years of improvement and accumulation. the leading products together with box semi trailer, low mattress semi trailer, fuel tank semi trailer,side wall semi trailer, shipment semi trailer, fence semi trailer, box semi trailer, tipper semi trailer, car service semi trailer and all sorts unique cause semi trailer.sinotruk shacman cc manufacturers truck tractor, sell off truck other truck collection collectively with all spare parts, inclusive of axles, touchdown gear,springs, suspension, and many others.
