Tri Axle Container Trailer
A tri axle container trailer is a type of trailer specifically designed for transporting shipping containers. It has three axles, which provide increased load capacity and stability. The trailer is typically equipped with twist locks, which are mechanical devices used to secure the containers to the trailer and prevent them from moving during transit.
Product Name: Tri Axle Container Trailer
Price:Direct factory. Order now and get 10% off
Different Parameters, Different Price
Contact us for more infos. Whatsapp/Tel: +86 18615520624
Email: sales@vehiclemaster.com
Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.
Specification of Tri Axle Container Trailer
20FT FLATBED TRAILER | ||
Brand: Vehicle Master
| Brand: Vehicle Master
| Brand: Vehicle Master
|
2 Axles/3 Axles
| 2 Axles/3 Axles /4 Axles
| 3 Axles /4 Axles
|
20ft Container / Cargo Loading
| 1*40ft/2*20ft Container / Cargo Loading
| 1*40ft/1*45ft Container / Cargo Loading
|
Loading Capacity: 20 - 60 Tons
| Loading Capacity: 30 - 80 Tons
| Loading Capacity: 30 - 80 Tons
|
Type: Gooseneck Type/ Tandem Type
| Type: Gooseneck Type/ Tandem Type
| Type: Gooseneck Type/ Tandem Type
|
Main Beam | ||
Material: Q345/T700
| Material: Q345/T700
| Main Beam Material: Q345/T700
|
Upper Plate Thickness: 12mm
| Upper Plate Thickness: 16mm
| Upper Plate Thickness: 16mm
|
Middle Plate Thickness: 6mm
| Middle Plate Thickness: 10mm
| Middle Plate Thickness: 10mm
|
Lower Plate Thickness: 14mm
| Lower Plate Thickness: 18mm
| Lower Plate Thickness: 18mm
|
Height: 500mm
| Height: 500mm
| Height: 500mm
|
Platform Thickness: 2.5mm
| Platform Thickness: 3mm
| Platform Thickness: 3mm
|
Dimension | ||
L*W*H: 7000mm*2500mm*1570mm
| L*W*H: 12400mm*2500mm*1570mm
| L*W*H: 13950mm*2500mm*1600mm
|
Axle | ||
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other
| 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Othe
| 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other
|
Tire | ||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
| 12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Bridgestone/ Other Brand
| 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
|
Rim | ||
9.00*22.5 (8/12 Pieces) Steel/Aluminum
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum
|
Leaf Spring | ||
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces
| 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces
|
King Pin | ||
#50(2")/#90(3.5"), JOST/Other Brand
| #50(2")/#90(3.5"), JOST/Other Brand
| #50(2")/#90(3.5"), JOST/Other Brand
|
Landing Gear | ||
28 Ton Two Speed, JOST/Other Brand
| 28 Ton Two Speed, JOST/Other Brand
| 28 Ton Two Speed, JOST/Other Brand
|
Twist Lock | ||
4 Sets
| 12 Sets
| 12 Sets
|
Vehicle Painting | ||
Electrophoresis painting
| Electrophoresis painting
| Electrophoresis painting |
Details of Tri Axle Container Trailer
Landing gear There are two and one speeds for you to choose from. | |

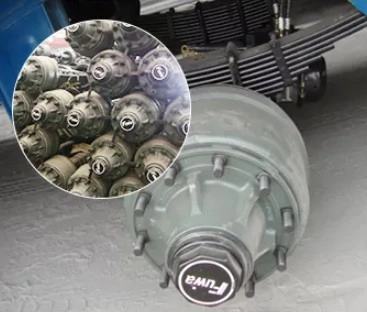

| Axle The best domestic brand, good quality, durable, can be selected according to the trailer weight axle number and tonnage. |

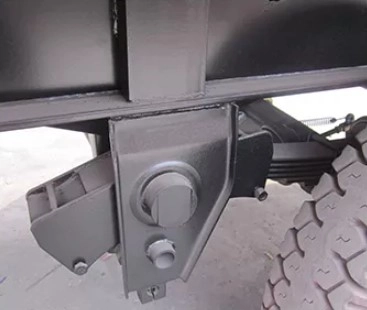

Suspension The thickness is 6mm or 8mm. | |
Videos of Tri Axle Container Trailer

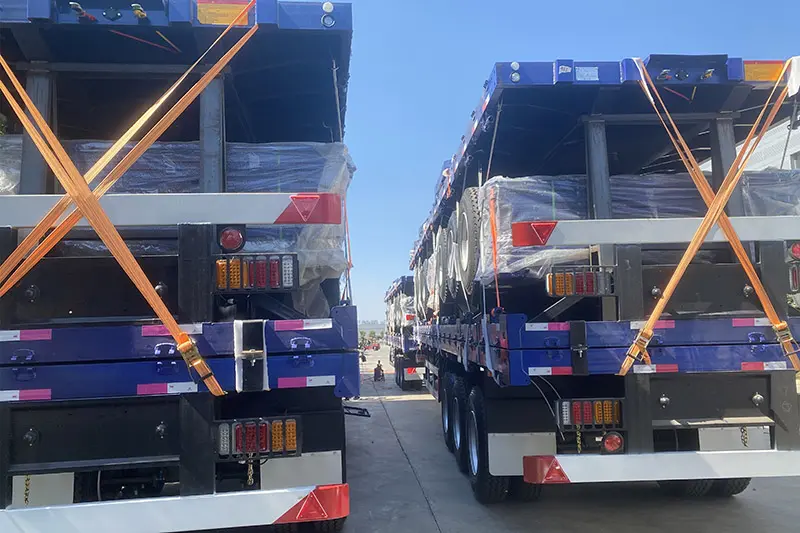

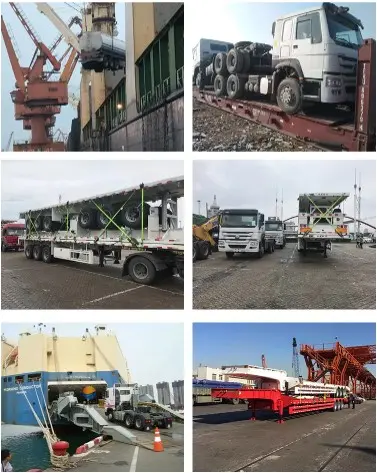

Packaging and transportation of Tri Axle Container Trailer

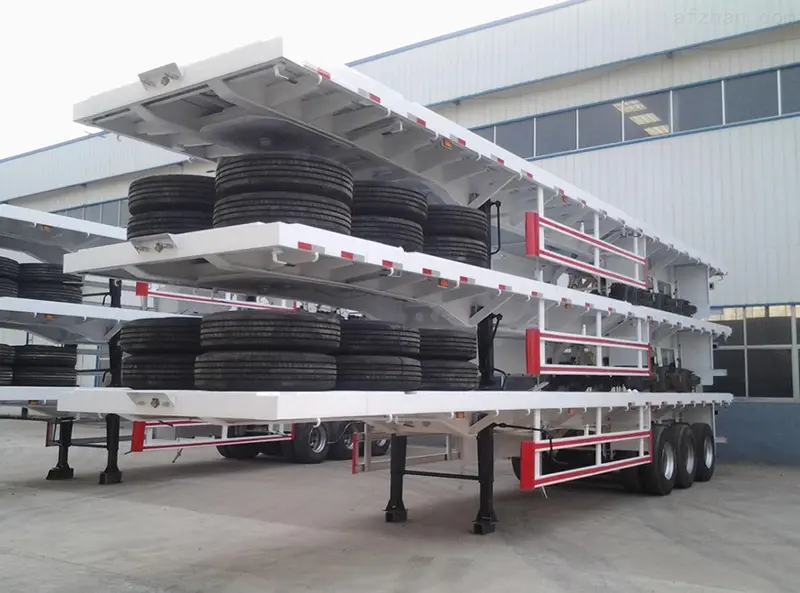

1.Nude Packing 3 sets stacked by bulk cargo ship/Ro-Ro ship/Land transportation；
2.Cut the rear part which can load two sets in one 40ft container;
3.Keep the trailer original but load two sets in one 45ft container.
Our Service
Before Sale Service
More Than 20 Technical-Business Staff,Provide most professional service and most economical solution for customers.
Middle Sale Service
Production schedule, delivery Time,Shipping Date, all processes are monitored and communicated to customers
After Sale Service
No matter what situation when you meet, service staffwill response within 12 hours and provide solution.
Our Factory
In view that 1980s emblem car master was created,entire personnel start to think about truck trailer transportation,through nearly forty years r&d,production and exercise,in the end turn out to be famous producer and supplier of truck trailer. vehicles manufacturing base over forty years of improvement and accumulation. the main products along with field semi trailer, low mattress semi trailer, fuel tank semi trailer,aspect wall semi trailer, shipment semi trailer, fence semi trailer, container semi trailer, tipper semi trailer, car carrier semi trailer and all sorts unique reason semi trailer.sinotruk shacman cc manufacturers truck tractor, dump truck different truck collection together with all spare elements, together with axles, landing equipment,springs, suspension, and so forth.
Contact: May
Liangshan Quanpu Industrial Park, Jining City, Shandong Province, China
Whatsapp/Tel: +86 18615520624
Email: sales@vehiclemaster.com
