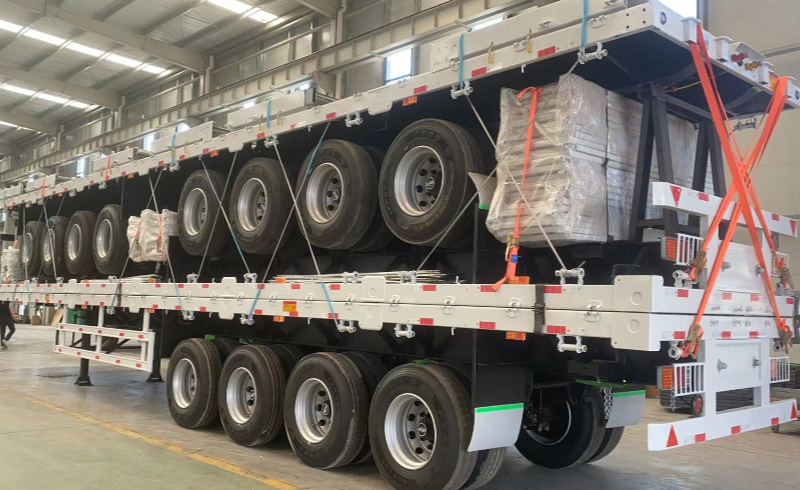

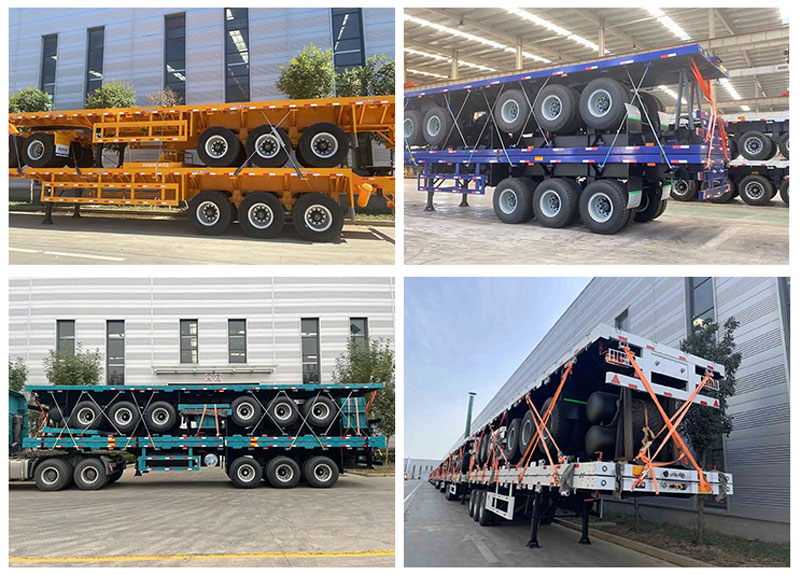

40ft Flatbed Trailer

Length:

12,500mm

Width:

2,500mm

Height:

1,550mm

Structure Spec.

Main beam

Material Q345B.

Fabricated “H” beam height 250/ 500mm

Top flange thickness 12mm

Middle web thickness 6mm

Bottom flange thickness 14mm

Welding standard

National Level Welding Supervisor.Meanwhile cooperate automatic welding machine.And More 30 minutes per process than normal welding time. Ensure the

best welding results.

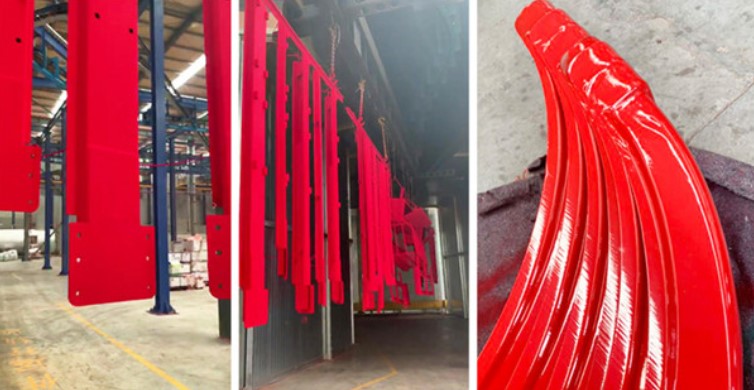

Painting

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Main Parts of Trailer

Suspension:

China heavy duty spring suspension,

leaf spring10pcs*13mm*90mm

Axle:

FUWA brand, 3pcs*13 ton capacity

Brake system:

Dual line pneumatic brake, SAE hose and connector,

without ABS

Brake chamber:

6 units T30/30 spring brake chambers

Tire and rim:

Double coin, 12R22.5, 12pcs, 9.0 steel disc wheel,

10 holes, 12 pcs.

King pin

50# or 90# bolted type

Twist lock

12 sets container twist locks

Landing gear:

heavy duty 28T two speeds telescopic manual landing gear

Electrical System

Voltage:

24 Volt

Receptacle:

7 way socket SAE standard, China

Front marker lamp:

White

Side marker lamp:

White & Red

Rear lamp:

Red

Turn signal lamp:

Amber

Reflector:

Per customer requirement

Wiring:

Electric cable protected by PVC conduit on main

frame

Spare Parts

Mud guard:

Steel mud guard

Spare wheel

carriers:

2 pcs

Tool box:

1 pc

Rope hook

26 pieces
