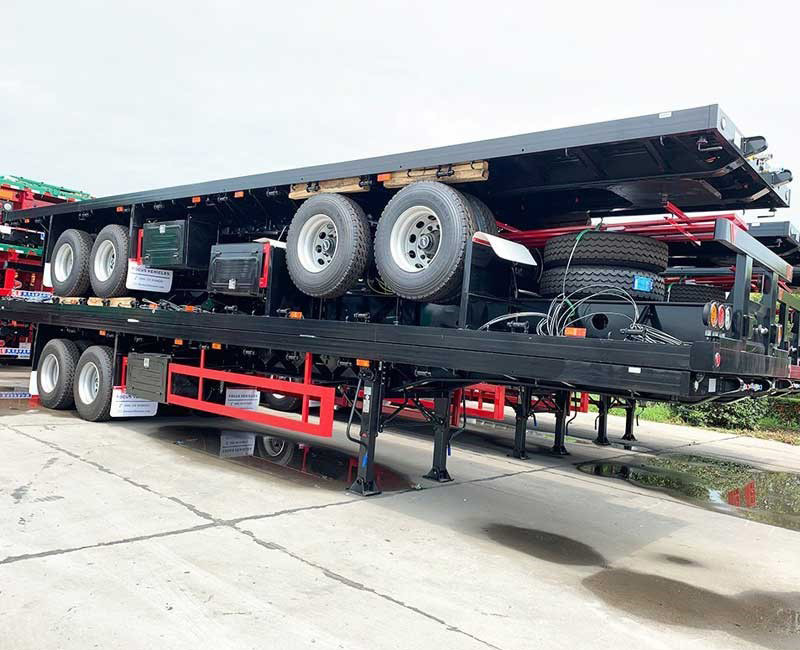

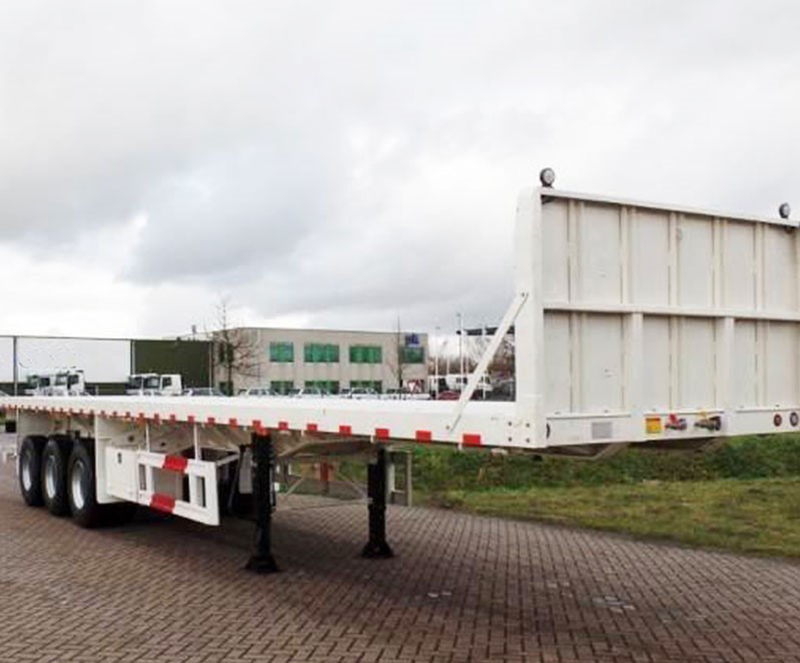

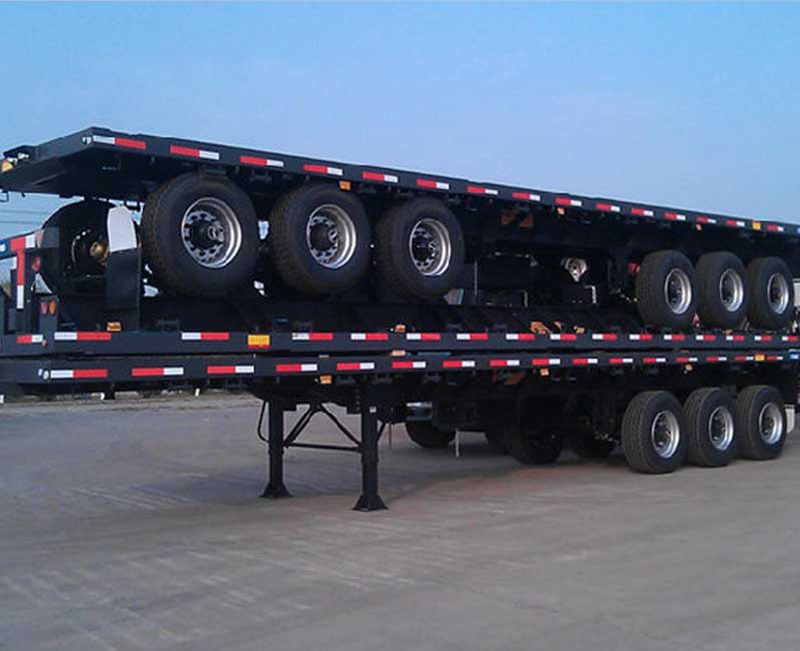

12m Flatbed Semi Trailer
Product Name: 12m Flatbed Semi Trailer
FOB Price: USD 4000 - USD 10000
Length: 20ft, 40ft, 45ft
Capacity: 30T, 40T, 50T, 60T, 80T
Packaging: SKD/CKD
Number of Axles: 2 axles, 3 axles, 4 axles or customized
Contact us for more infos. Whatsapp/Phone Number: +86 18615520624
Email: sales@vehiclemaster.com
Vehicle Master 12m Flatbed Semi Trailer gives excessive satisfactory with the fantastic value, most potential and safety, and aggressive performance.12m Flatbed Semi Trailer is broadly used for containers and bulk cargo transport, such as metal coils, metal sheets,gricultural products, quite a number pallets and bagged cargo, etc.Usually inter-city transportation can be dustproof and rainproof after loading with tarpaulin and physique tightening device.
12m Flatbed Semi Trailer semi trailer is light weight and very promising for its anti-torsion, anti-vibration, anti-bump, and ability to meet different road bearing requirements.12m Flatbed Semi Trailer is a full trailer, mainly used for turnover transportation in factories, docks, ports, airports and other fields, not for long-distance transportation on expressways. The flatbed semi trailer itself has no power and can be pulled by forklifts and tractors.
Video of 12m Flatbed Semi Trailer
Specification of 12m Flatbed Semi Trailer
20FT FLATBED SEMI TRAILER | ||
Brand: Vehicle Master | Brand: Vehicle Master | Brand: Vehicle Master |
2 Axles/3 Axles | 2 Axles/3 Axles /4 Axles | 3 Axles /4 Axles |
20ft Container / Cargo Loading
| 1*40ft/2*20ft Container / Cargo Loading | 1*40ft/1*45ft Container / Cargo Loading |
Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 80 Tons |
Type: Gooseneck Type/ Tandem Type | Type: Gooseneck Type/ Tandem Type | Type: Gooseneck Type/ Tandem Type |
Main Beam | ||
Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 |
Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm |
Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm |
Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm |
Height: 500mm | Height: 500mm | Height: 500mm |
Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm |
Dimension | ||
L*W*H: 7000mm*2500mm*1570mm | L*W*H: 12400mm*2500mm*1570mm | L*W*H: 13950mm*2500mm*1600mm |
Axle | ||
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other |
Tire | ||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
| 12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Bridgestone/ Other Brand
| 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand
|
Rim | ||
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum |
Leaf Spring | ||
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
King Pin | ||
#50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand |
Landing Gear | ||
28 Ton Two Speed, JOST/Other Brand | 28 Ton Two Speed, JOST/Other Brand | 28 Ton Two Speed, JOST/Other Brand |
Twist Lock | ||
4 Sets | 12 Sets | 12 Sets |
Vehicle Painting | ||
Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
It's important to note that the specific features and specifications of a 12m flatbed semi trailer can vary depending on the manufacturer and model. If you are looking for detailed information or specific configuration options, it is always advisable to consult with us directly.
Contact us for more infos. Whatsapp/Phone Number: +86 18615520624
Email: sales@vehiclemaster.com
Details of 12m Flatbed Semi Trailer

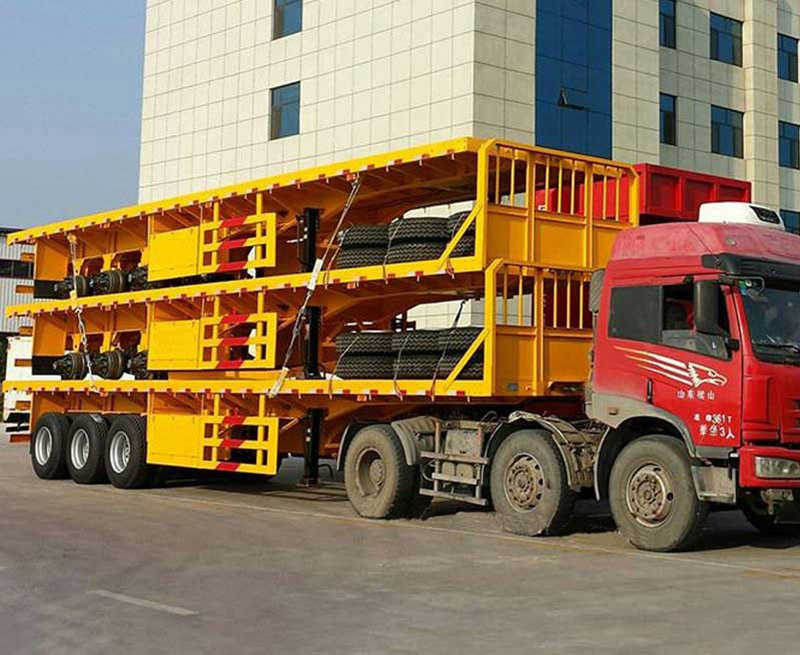

 | Flatbed with Pillars A number of posts can be installed on the edge of the flatbed truck for transporting logs and steel pipes |

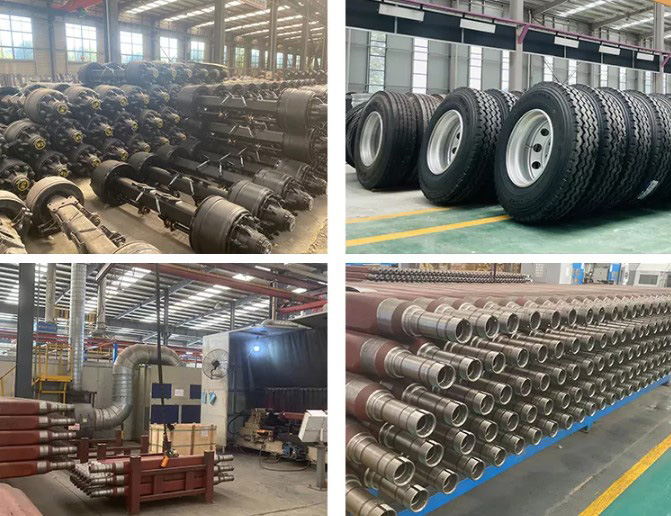

 | Advanced axle performance Integrated advanced low alloy shaft beam, no solder joint; Strong capacity, high strength; Axles are maintenance-free for up to 3 years or 400,000km. |
 | Tires Premium tire brands likePremium tire brands like Linglong, Michelin, Triangle and Bridgestone were selected as the best performers. |

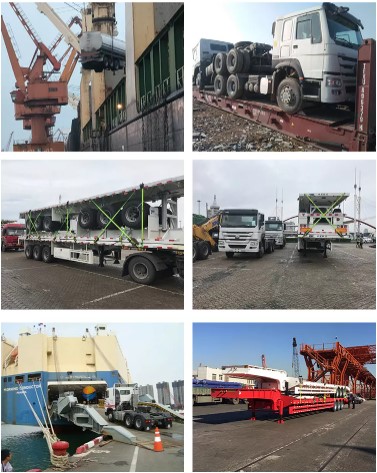

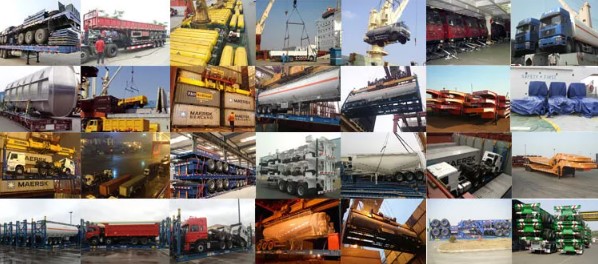

Packages and Deliverages of 12m Flatbed Semi Trailer
Packaging Details 40ft container flatbed semi trailer 12m Flatbed Semi Trailer
1.Nude Packing 3 sets stacked by bulk cargo ship/Ro-Ro ship/Land transportation
2.Cut the rear part which can load two sets in one 40ft container;
3.Keep the trailer original but load two sets in one 45ft container.
Port
qingdao
Our advantages
1.Factory direct sale
2.Our merchandise can be personalized in accordance to a range of desires consisting of customized agency logo.
3.Cutting vicinity computerized tools adopted in the factory. Steel is welded by computerized submerged arc process, which makes the connection spots show up flawless, more robust and lengthy lasting in distinction to standard ways.
4. The sand blasting powder painting manner is greater sustainable, corrosion-resistant, uniform, and smooth.
